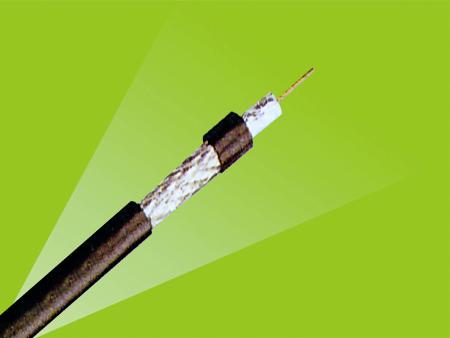

RG-59 COAXIAL CABLE 75 OHM

Conductor: 0.81MM CU(or CCS)

Insulation:3.6mm FOAM PE,

Shield: AL Foil

Diameter:6.0MM Black Or White PVC

Braiding

 BRAID 32X0.12MM CU (or CCA)

 BRAID 48X0.12MM CU (or CCA)

 BRAID 64X0.12MM CU (or CCA)

 BRAID 80X0.12MM CU (or CCA)

 BRAID 96X0.12MM CU (or CCA)

 BRAID 112X0.12MM CU (or CCA)

 BRAID 128X0.12MM CU (or CCA)

Applicable

Mainly applicable to the usage of optical line and equipment in communication business if

connecting, transmission telephone and TV. The operation frequency range for coaxial cable

is 5-1000MHz
